A sensor in my garden with Lora32U4II

I did make a sensor to measure the temperature in my garden.

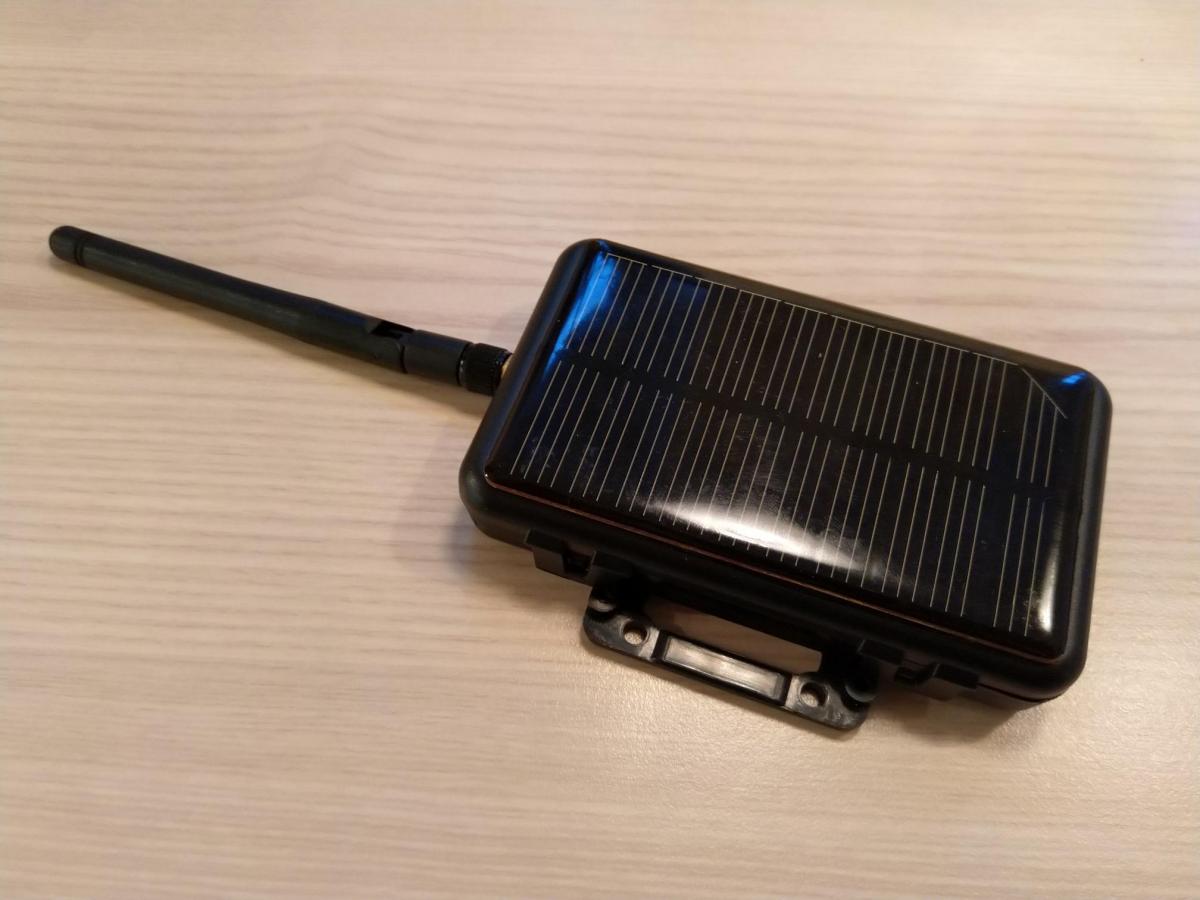

I get a box with 5 volt solar panel on , a lipo  and a Lora32U4II board.

You can find the code and the data here.



A Lora32U4II and a DS18b20 Sensor with solar and lipo.

CSV



****************************************************'

#include <lmic.h>
#include <hal/hal.h>
#include "LowPower.h"
#include <OneWire.h>
#include <DallasTemperature.h>

#define ONE_WIRE_BUS 5
OneWire oneWire(ONE_WIRE_BUS);
DallasTemperature sensors(&oneWire);

static const PROGMEM u1_t NWKSKEY[16] ={ 0x18, 0x35, 0xF9, 0x9E, 0x66, 0x06, 0x75, 0xF2, 0xE2, 0x31, 0xB5, 0x62, 0x9D, 0x53, 0x00, 0x00 };
static const u1_t PROGMEM APPSKEY[16] = { 0xF8, 0x72, 0x0D, 0x33, 0x59, 0x14, 0xCD, 0x73, 0xA1, 0x1A, 0xC2, 0xCB, 0x9C, 0x20, 0x00, 0x00 };
static const u4_t DEVADDR = 0x26011B00 ;

void os_getArtEui (u1_t* buf) { }
void os_getDevEui (u1_t* buf) { }
void os_getDevKey (u1_t* buf) { }

 float Celcius=0;

static uint8_t mydata[] = {0x00,0x00,0x00};

static osjob_t sendjob;

const lmic_pinmap lmic_pins = {
    .nss = 8,                      // Digital pin connected to SS
    .rxtx = LMIC_UNUSED_PIN,       // we do not use these
    .rst = 4,                      // Digital pin connected to RST
    .dio = {7, 1, 2},              // Digital pin connected to 00,01,02
};

void onEvent (ev_t ev) {
    switch(ev) {
        case EV_TXCOMPLETE:
            for (int i=0; i<=2; i++) {
               LowPower.powerDown(SLEEP_8S, ADC_OFF, BOD_OFF);
            }
            do_send(&sendjob);
            break;
    }
}

void do_send(osjob_t* j){
    if (LMIC.opmode & OP_TXRXPEND) {
    } else {
        LMIC_setTxData2(1, mydata, sizeof(mydata), 0);
    }
}

void setup() {
    sensors.begin();
    os_init();
    LMIC_reset();
    #ifdef PROGMEM
      uint8_t appskey[sizeof(APPSKEY)];
      uint8_t nwkskey[sizeof(NWKSKEY)];
      memcpy_P(appskey, APPSKEY, sizeof(APPSKEY));
      memcpy_P(nwkskey, NWKSKEY, sizeof(NWKSKEY));
      LMIC_setSession (0x1, DEVADDR, nwkskey, appskey);
    #else
      LMIC_setSession (0x1, DEVADDR, NWKSKEY, APPSKEY);
    #endif
    LMIC_setupChannel(0, 868100000, DR_RANGE_MAP(DR_SF12, DR_SF7),  BAND_CENTI);      // g-band
    LMIC_setupChannel(1, 868300000, DR_RANGE_MAP(DR_SF12, DR_SF7B), BAND_CENTI);      // g-band
    LMIC_setupChannel(2, 868500000, DR_RANGE_MAP(DR_SF12, DR_SF7),  BAND_CENTI);      // g-band
    LMIC_setupChannel(3, 867100000, DR_RANGE_MAP(DR_SF12, DR_SF7),  BAND_CENTI);      // g-band
    LMIC_setupChannel(4, 867300000, DR_RANGE_MAP(DR_SF12, DR_SF7),  BAND_CENTI);      // g-band
    LMIC_setupChannel(5, 867500000, DR_RANGE_MAP(DR_SF12, DR_SF7),  BAND_CENTI);      // g-band
    LMIC_setupChannel(6, 867700000, DR_RANGE_MAP(DR_SF12, DR_SF7),  BAND_CENTI);      // g-band
    LMIC_setupChannel(7, 867900000, DR_RANGE_MAP(DR_SF12, DR_SF7),  BAND_CENTI);      // g-band
    LMIC_setupChannel(8, 868800000, DR_RANGE_MAP(DR_FSK,  DR_FSK),  BAND_MILLI);      // g2-band
    LMIC_setLinkCheckMode(0);
    LMIC_setDrTxpow(DR_SF7, 14);
    LMIC_setClockError(MAX_CLOCK_ERROR * 1 / 100);
    LMIC.dn2Dr = DR_SF9;
    do_send(&sendjob);
}

void loop() {

    os_runloop_once();
    delay(1000);
    sensors.requestTemperatures();
    Celcius=sensors.getTempCByIndex(0)*100;
    int hex1 = (int)Celcius >> 8;
    int hex2 = (int)Celcius & 0xFF;
    mydata[0]= hex1;
    mydata[1]= hex2;
    mydata[2]= (analogRead(A2)/15);
 }
